Schedule features:
Preset one or more events on specific date and time range. One event may contain one or more contents with a play-list sequence.
One or more events can be easily uploaded to selective target clients through FTP function.
AV Schedulers are installed at one or more client PCs. A client is a PC workstation, which connects with one or multiple display units through video splitter.
Both the contents and time schedules of various events are sent from the AV Manager control unit to all display clients through LAN, WAN or Internet.
If two or more display units are connected to a same client workstation, then the same contents will be broadcasted simultaneously.
If each display unit is to play
different contents at the same time, each display unit shall
connect to a separate client workstation each with a unique IP
address. And the control unit will send different contents and
schedules to different client workstations.
Schedule wizard is a simple wizard help you to select contents and set schedule for multiple events easily.

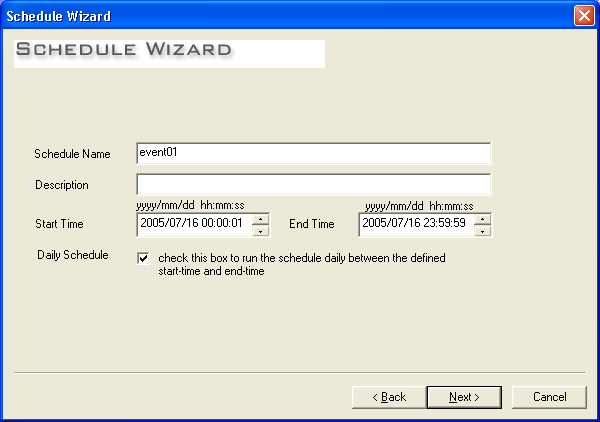

Click Schedule Wizard, input name, description, start time and end time of the schedule. Check the Daily Schedule box if it is a daily schedule.

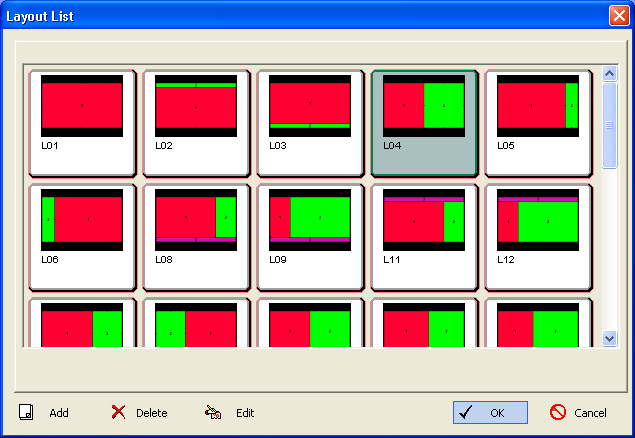

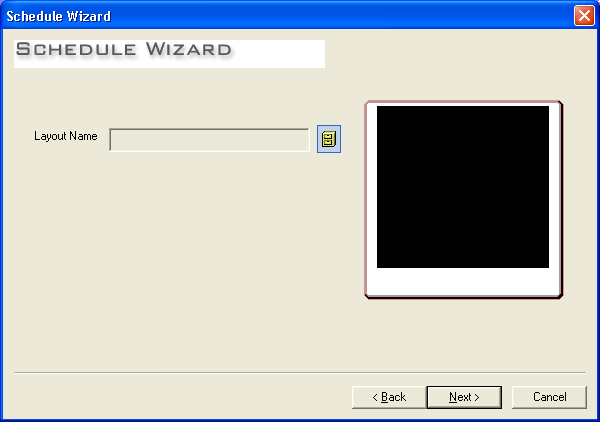

Select the layout of the schedule. The system provides many default layouts and you can also create your own layout.
For example, select the layout contains 2 zones.
Select the sequence contains in each zone.

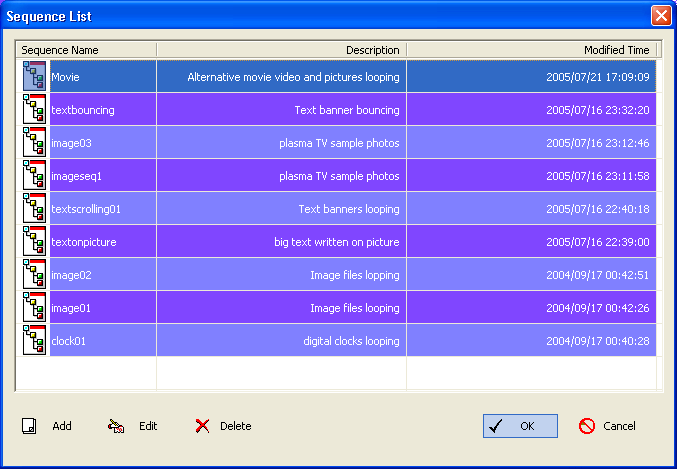

For example, select "Movie" in zone1.
Click zone2.

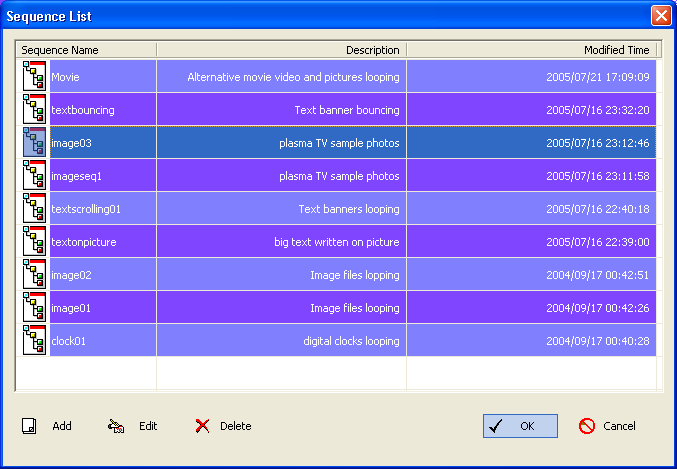

Select "image03" in zone2.

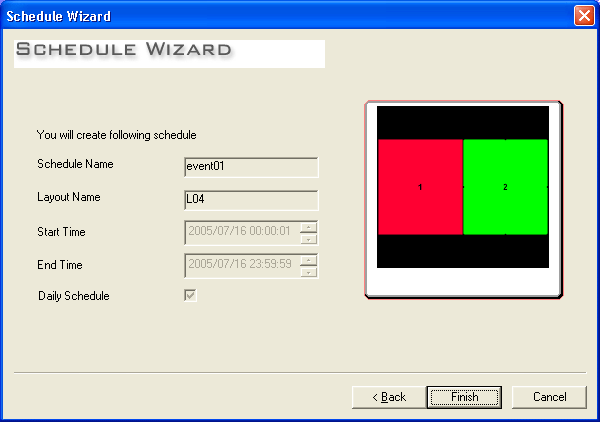

Click Finish to generate the schedule and wait for a few seconds.

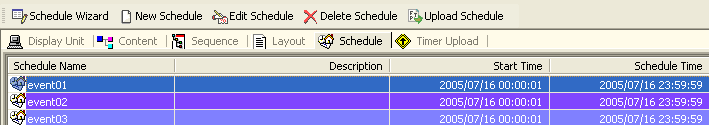

A new schedule is created and displayed in the schedule list.

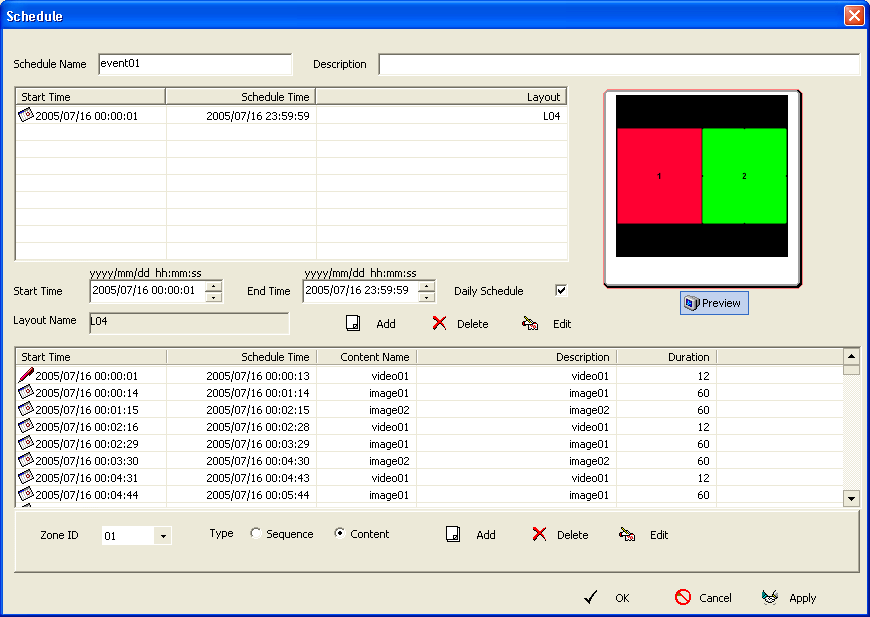

You can preview or edit the schedule by double click it.
