How to streaming to Wowza Media Server or Adobe Media Server


1. VideoCap Live ActiveX support broadcast RTMP to Wowza Media Server or Adobe Media Server. So you need setup another computer to received RTMP streams. In this tutorial we will use Wowza Media Server. You may download Wowza Streaming Engine Installer from http://www.wowza.com/pricing/installer

You will need java. Download and install JDK 8 from Oracle website if you don’t have it.
Follow the on-screen instructions for installation.

2. Open Wowza engine manager in web browser by entering the URL
http://localhost:8088/enginemanager

3. Enter login information which you provided during installation.

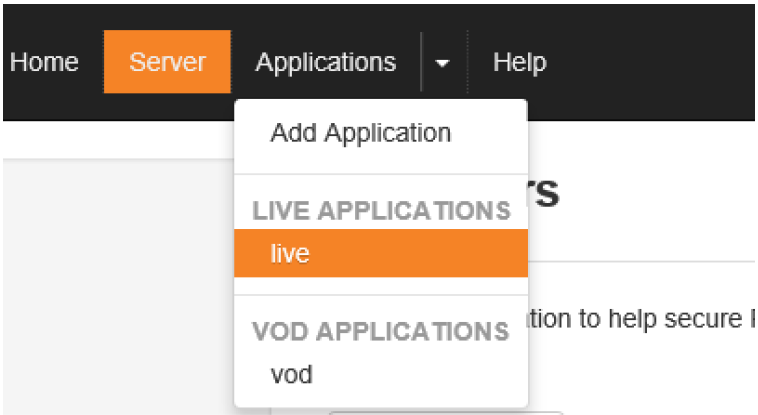

4. Click the Applications drop down button and select live

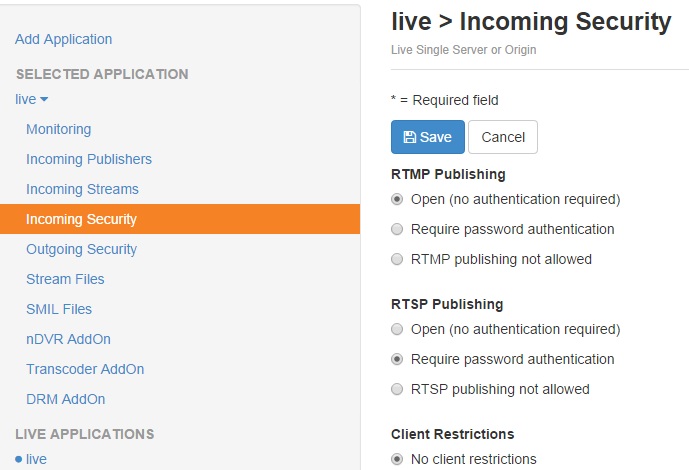

5.Select live - Incoming Security, Click Edit button

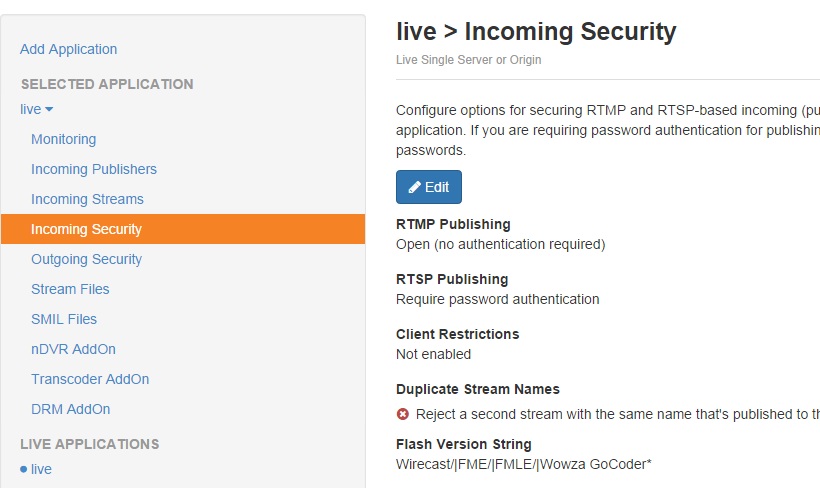

 6.In RTMP Publishing select Open (no authentication required) and Click Save button , If you use 4.6.version or above the screen have some different, please see 6-b, see 6-c


6-b For Wowza Media Server. 4.6.version or above,  Select Source Security, Click Edit button.

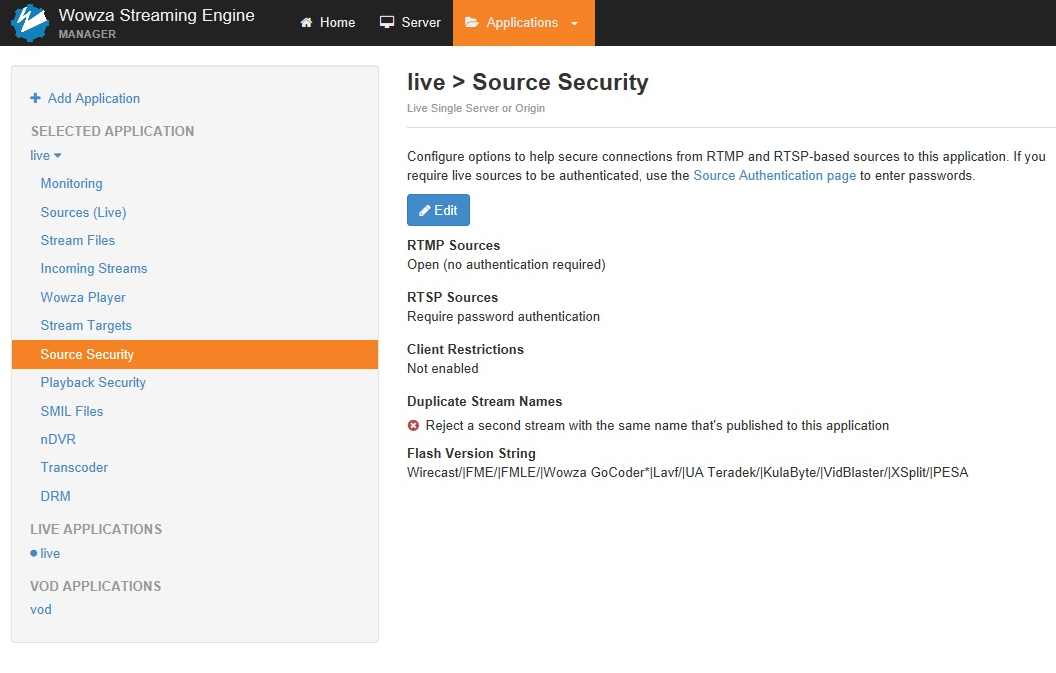

6-c For Wowza Media Server. 4.6.version or above, Select Open (no authentication required) Source Security, Click Save button.

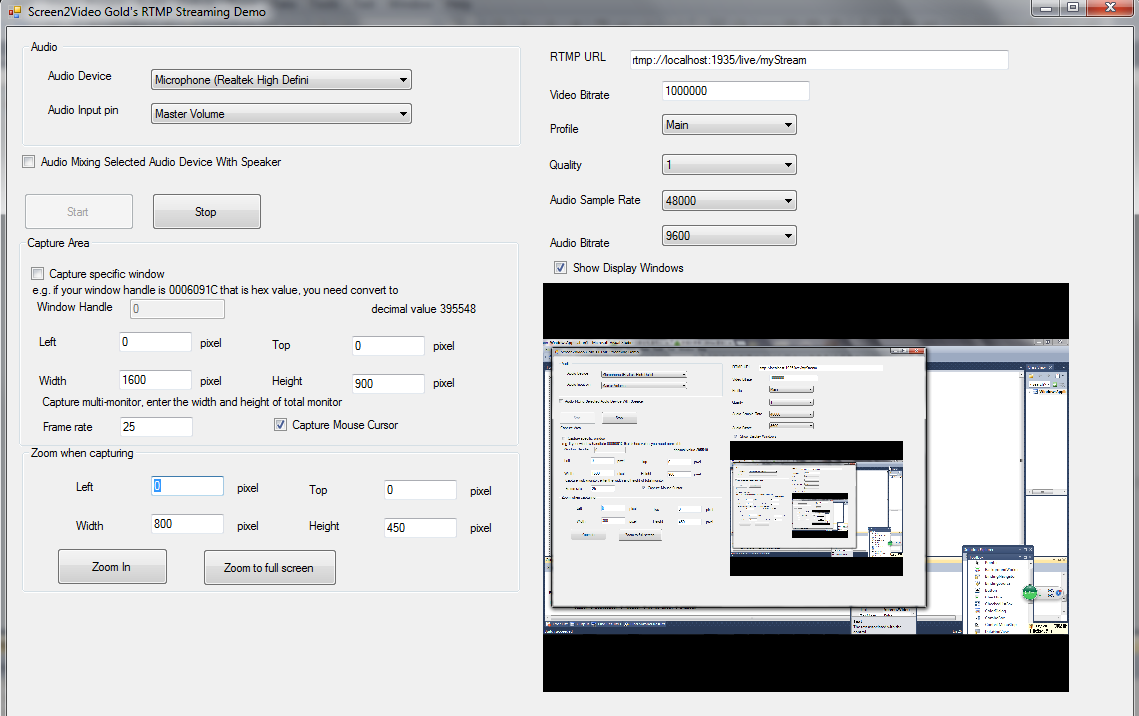

7. Run our Screen2VideoGold's RTMP Streaming sample , Click 'Start' button. If you tested on one computer only ( Wowza Media Server computer and Screen2VideoGold's RTMP Streaming sample on same computer ), you may enter localhost in RTMP URL. Otherwise you need enter correct IP address of Wowza Media Server.
e.g.
rtmp://[Wowza_server_IP]:1935/live/myStream

live is the application name running on Wowza server. You should keep it as it is.
MyStream is the stream name. You can put any name you want to give your stream.

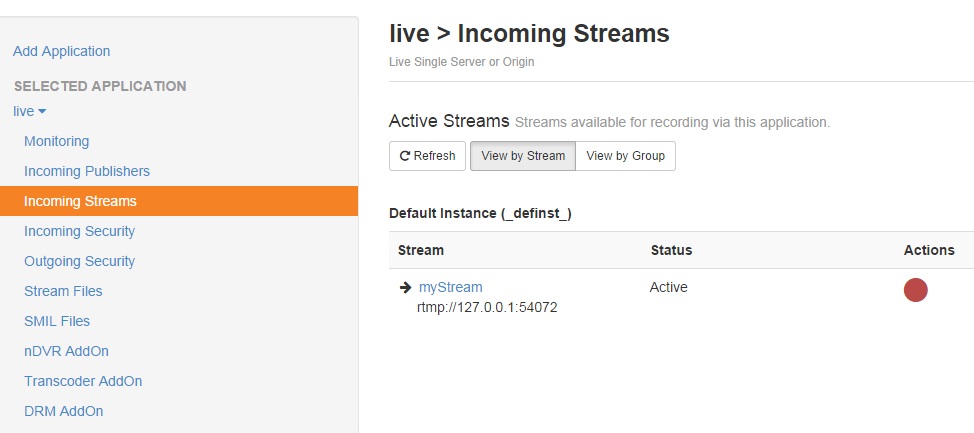

8. In Wowza Media Server computer, Select live - Incoming Streams, Click Refresh button, you should see the Stream connected. Otherwise you have firewall blocked. try close the firewall on Wowza Media Server computer,

8a. If you cannot see the Stream connected on Wowza Media Server computer, Select Control Panel - Windows Firewall - Advanced settings

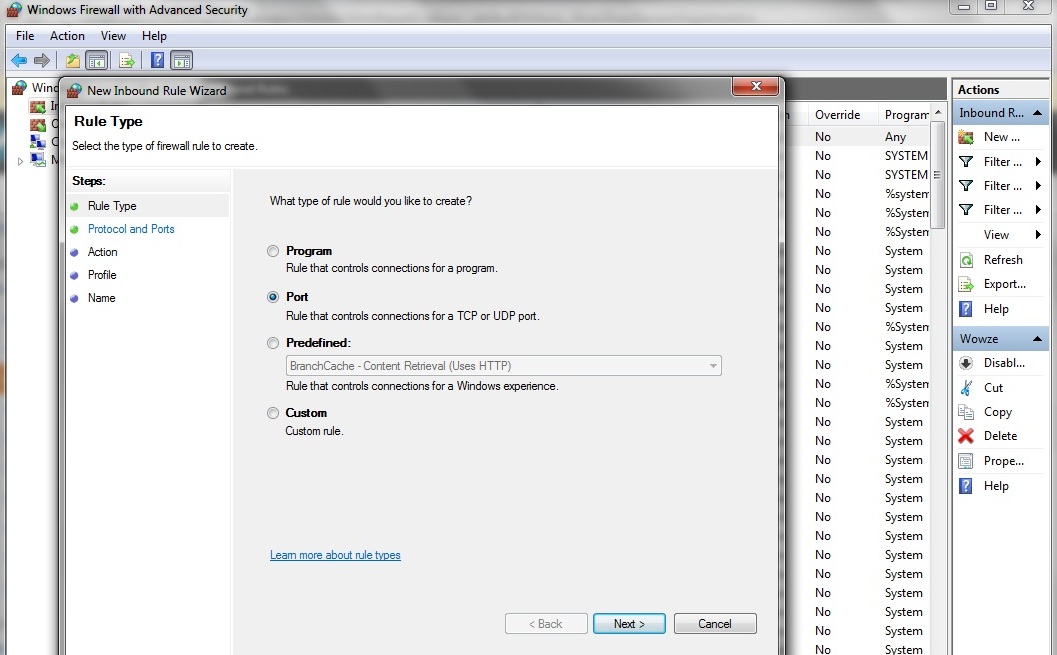

8b. Select Inbound Rules, click New Rule,  Select Port and click Next button

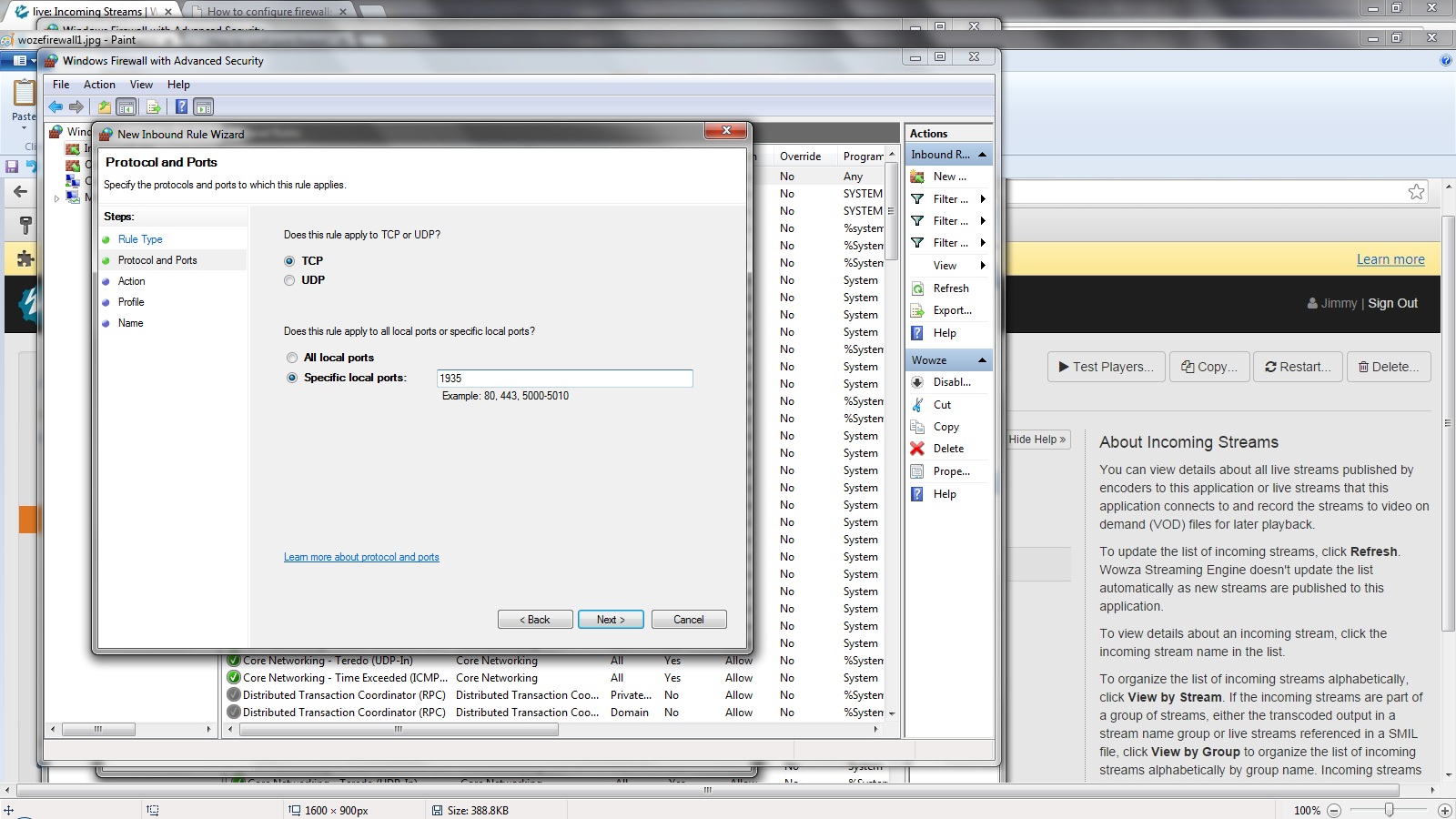

8c. select TCP and enter 1935 in Specific local ports, click Next button

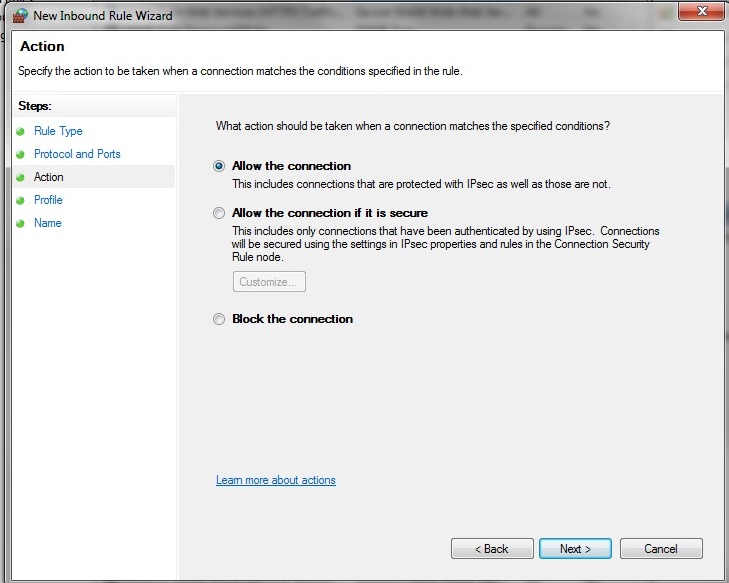

8d. Select Allow the connection and click Next button

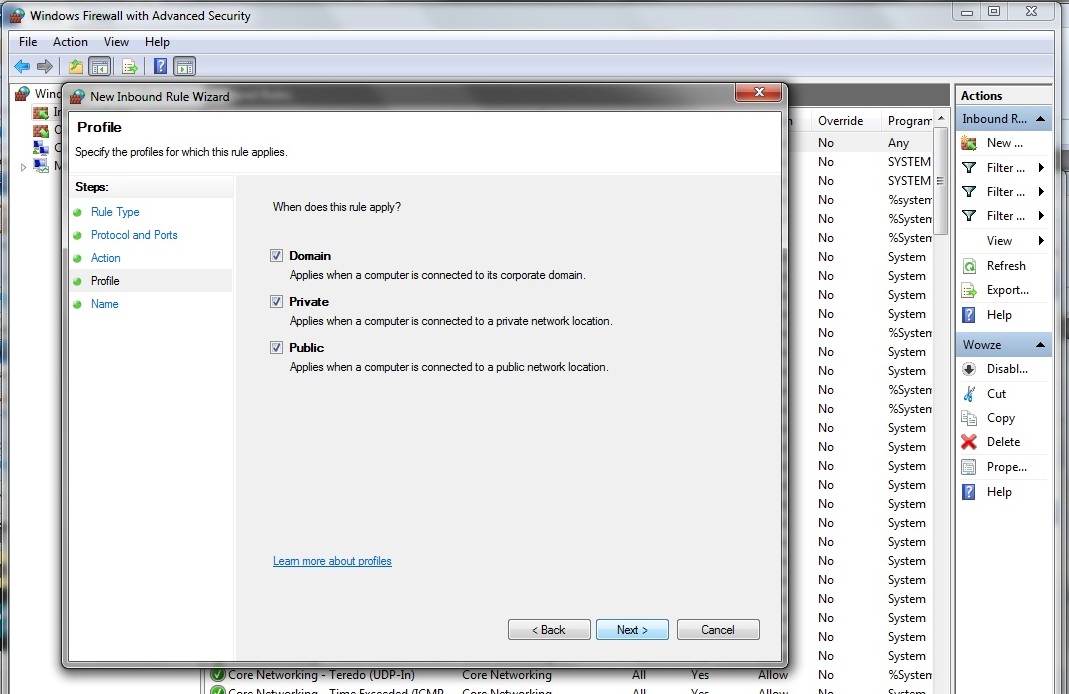

8e. Select Domain, Private, Public checkbox and click Next button

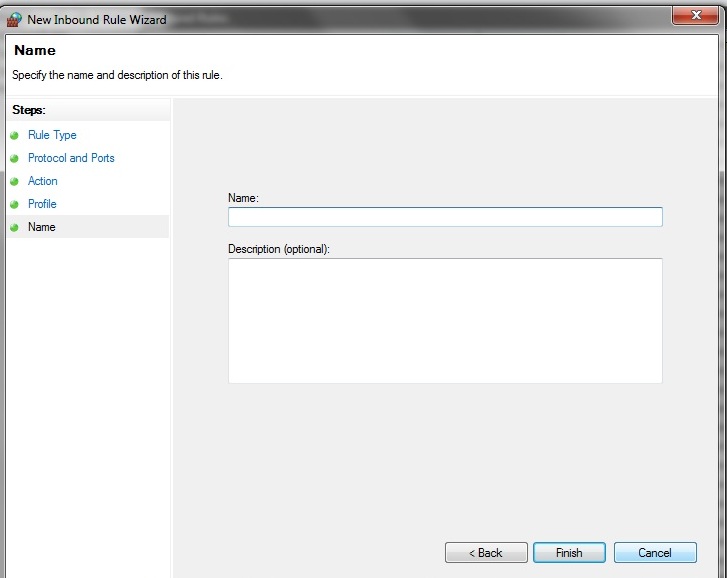

8f. Enter the name and click Finish button. You can put any name you want to give your rule.

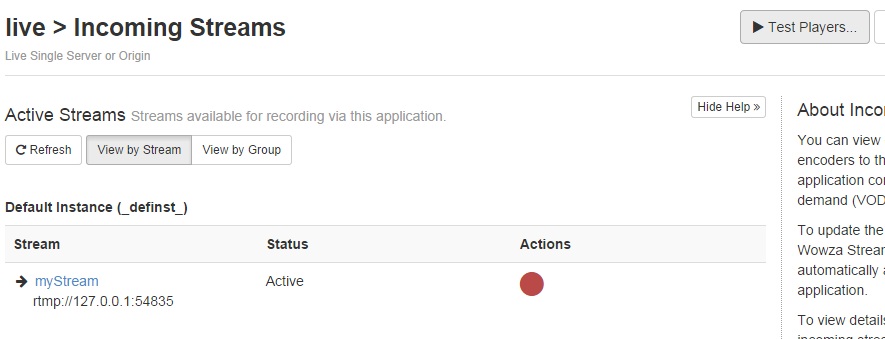

9 Select live - Incoming Streams, Click Refresh button, you should see the Stream connected.  Click Test Players button

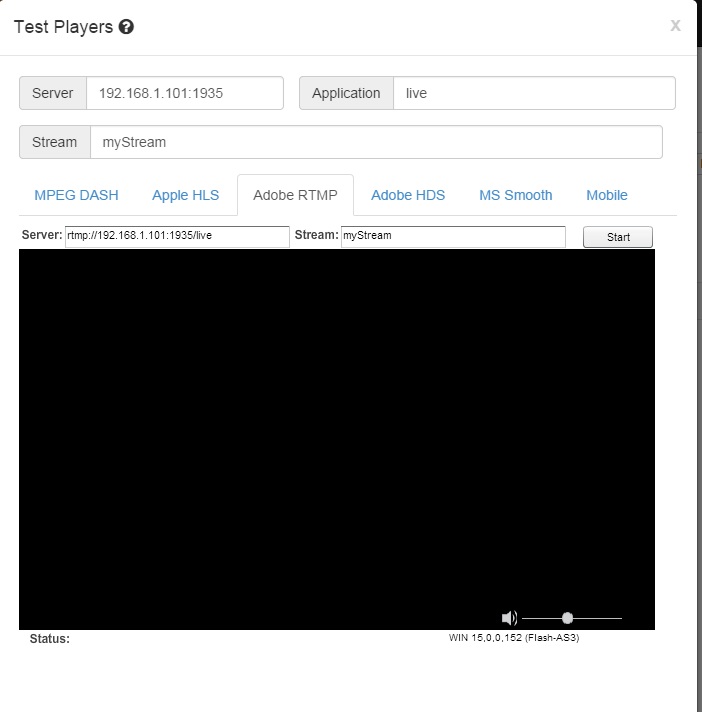

10. Select Adobe RTMP tab, click Start button, you may watch the stream now. It mean Screen2Video Gold sample  streaming to Wowza Media Server successfully.
